HOWO 6×4 Truck-Mounted Crane
HOWO 6×4 Truck-Mounted Crane, integrating hoisting and transportation in one, suitable for engineering, logistics, municipal and other multi-scenario operations. Multiple crane models available with flexible operation, solid chassis, strong load capacity and all-road adaptability, customizable to fit construction and transportation needs.
Refurbished HOWO 6×4 Truck-Mounted Crane
- Drive type: 6×4
- Tonnage: 10t, 12t, 14t, 16t
- Horsepower/ Emission Standard:371HP/Euro II
- Cargo box basic config: 6.2m(L)×2.45m(W), side board 600mm(H); 3mm bottom, 2mm side, external inserting piles.
Note
Basic configuration of truck-mounted crane: 10-ton with 4-section boom, refurbished and serviced; hydraulic system, steel wire rope, operating valve and hydraulic outriggers all inspected. Aged or oil-leaking hydraulic pipes will be replaced with new ones.
New replacement for the whole hydraulic system: extra cost based on actual accessory prices
New replacement for steel wire rope: extra cost based on actual prices
Crane tonnage options: 10t, 12t, 14t, 16t (all with 4-section boom). Upgrading tonnage: extra cost based on the actual price difference of tonnages; adding boom sections: an extra 3000 CNY.
New replacement for the entire crane: priced according to the actual factory quotation.
Basic configuration of crane cargo box panels: 6.2m(L)×2.45m(W), side board 600mm(H); 3mm bottom panel, 2mm side panels, with external inserting piles.
Extending the box length by more than 50cm: extra cost based on the actual factory price.
Default vehicle tire model: factory-fitted 1200R18 tubeless tire with classic three-rib pattern.
Changing tire configuration: extra cost based on the actual tire prices.

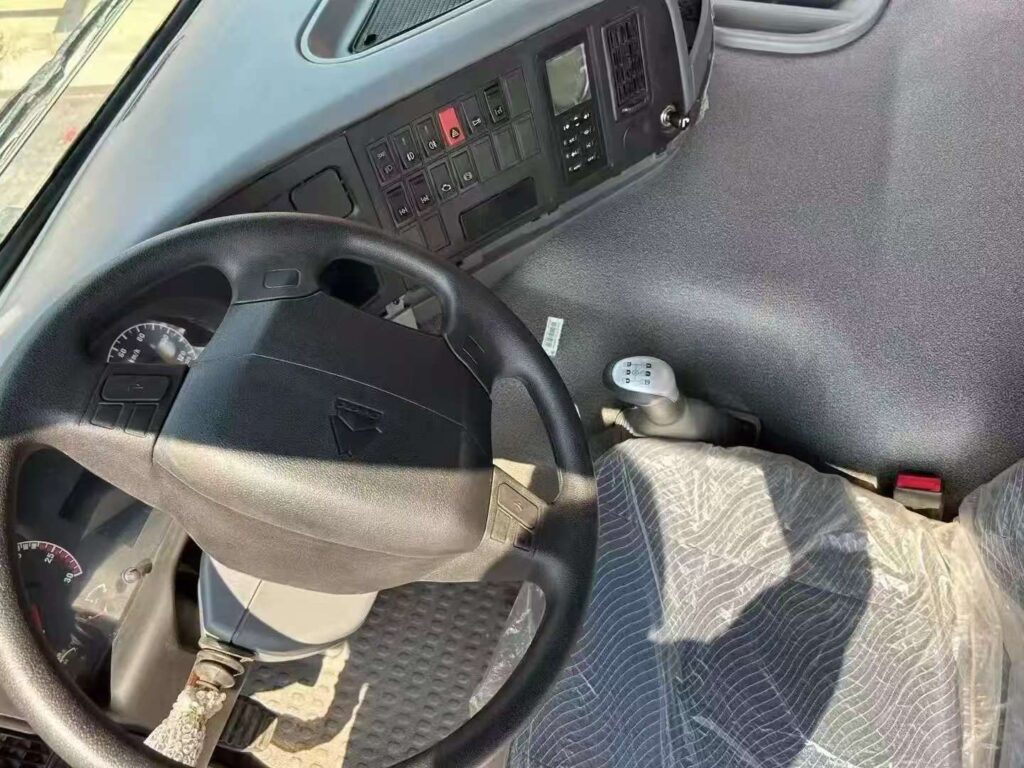

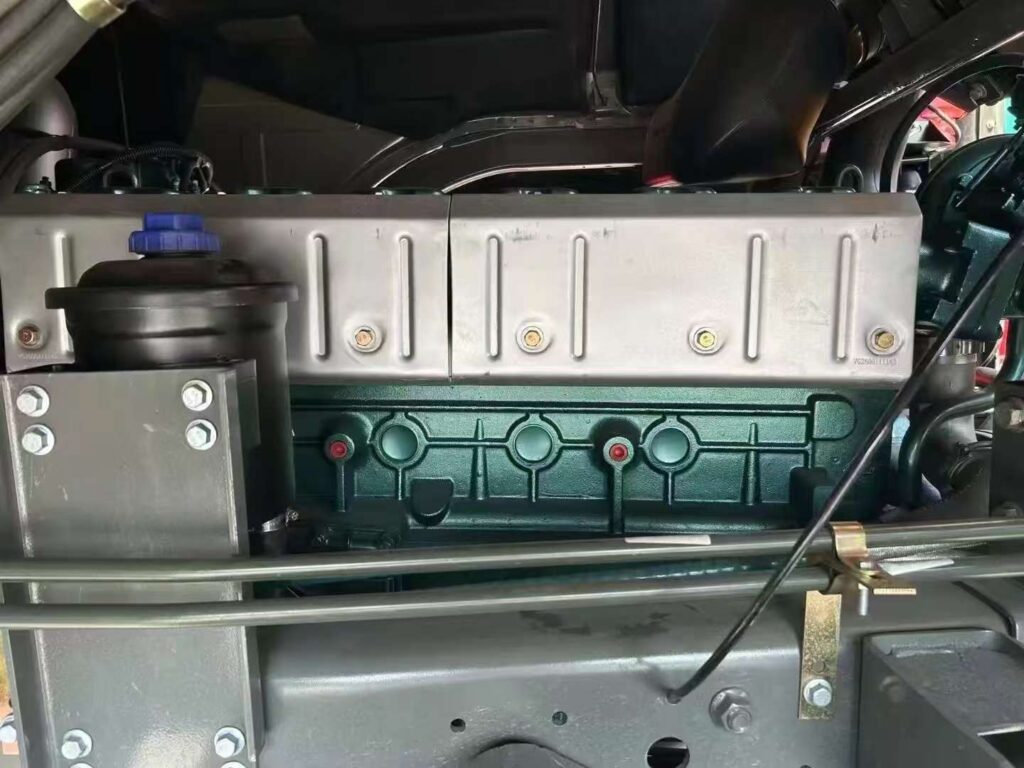

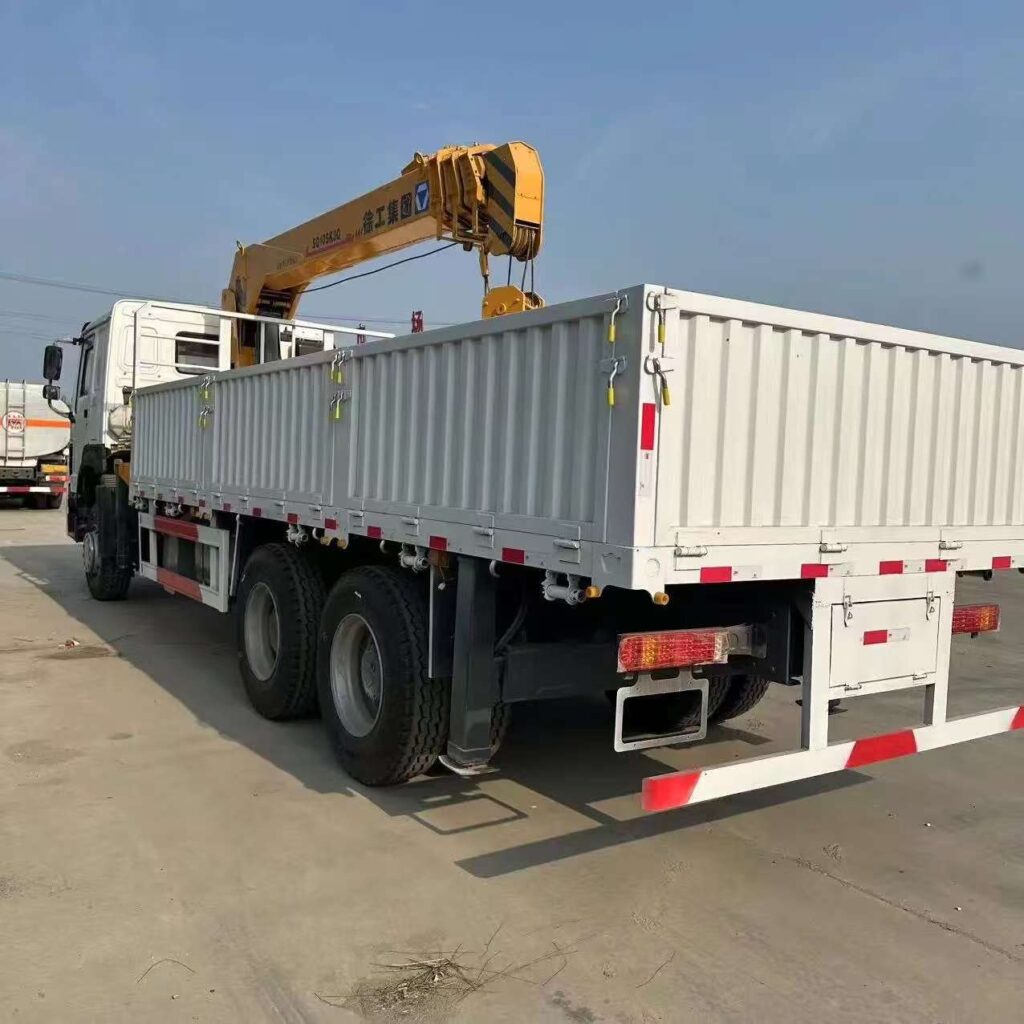

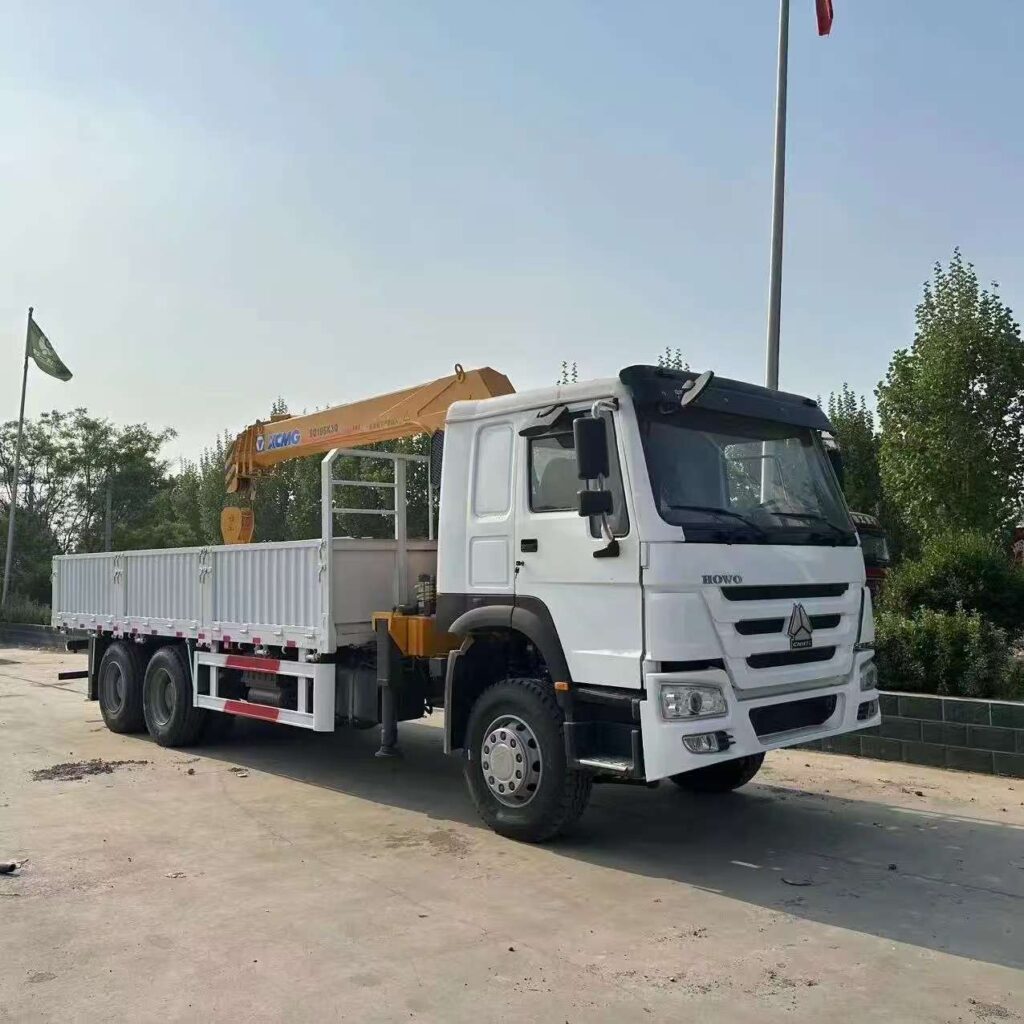

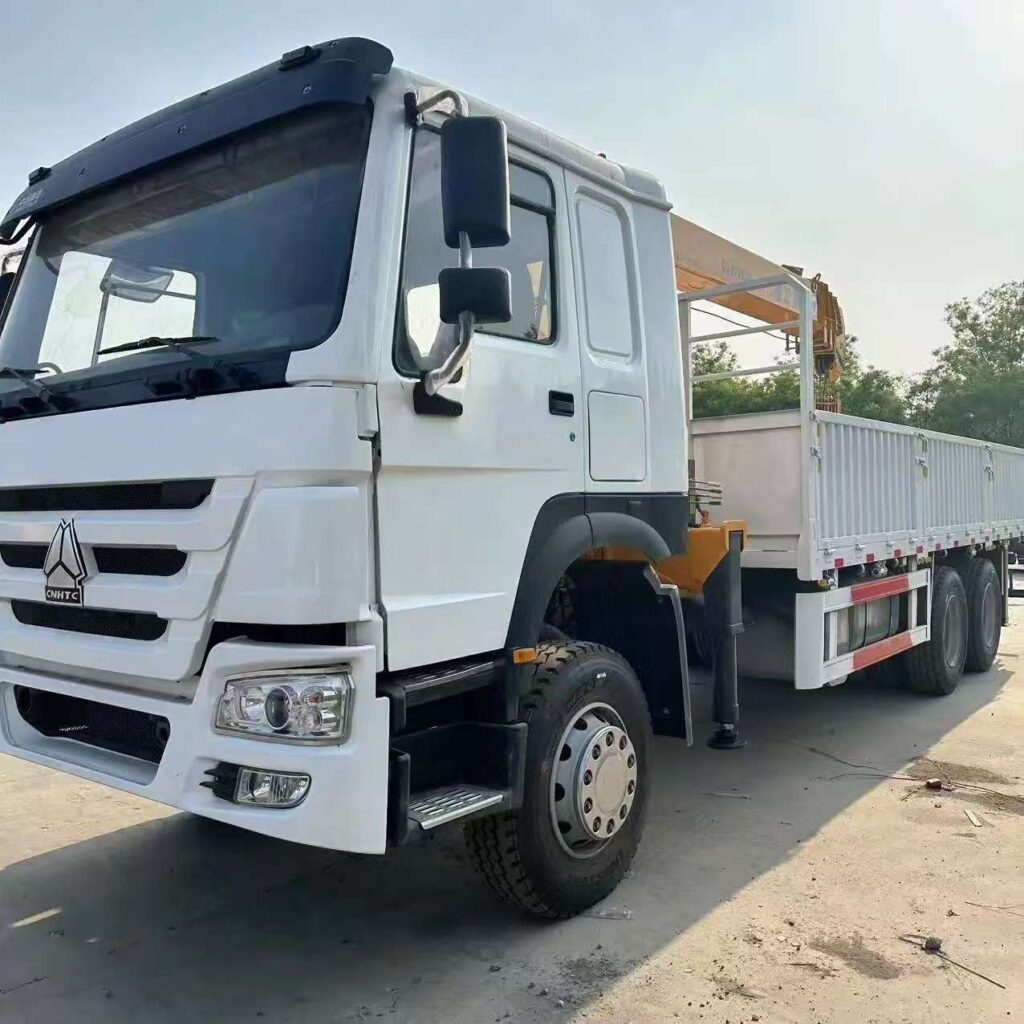

Gallery
